LEVER HOIST
TOYO-INTL VA Lever Hoist
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
The lever principle is presented as reducing manual effort. The source states that no electricity is required. A double-pawl brake is listed under the safe-and-reliable design. Overload protection and a forged hook are listed as safety features. The product is described as compact and lightweight for portability. The source labels a stamping handwheel and a black end chain ring. The visual specification sheet shows 0.5T through 9T rows with 1.5 m standard lift.
Product Details
- The lever principle is presented as reducing manual effort.
- The source states that no electricity is required.
- A double-pawl brake is listed under the safe-and-reliable design.
- Overload protection and a forged hook are listed as safety features.
- The product is described as compact and lightweight for portability.

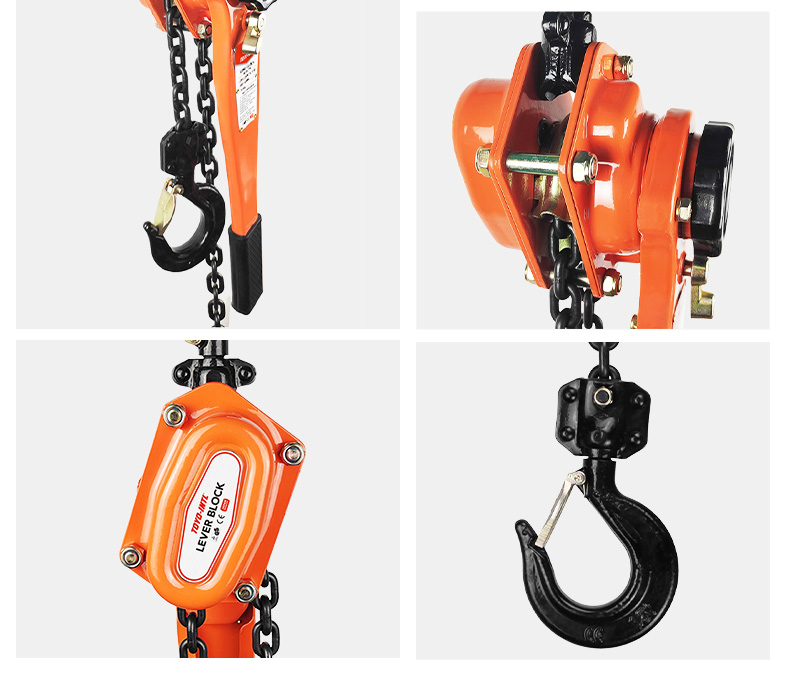

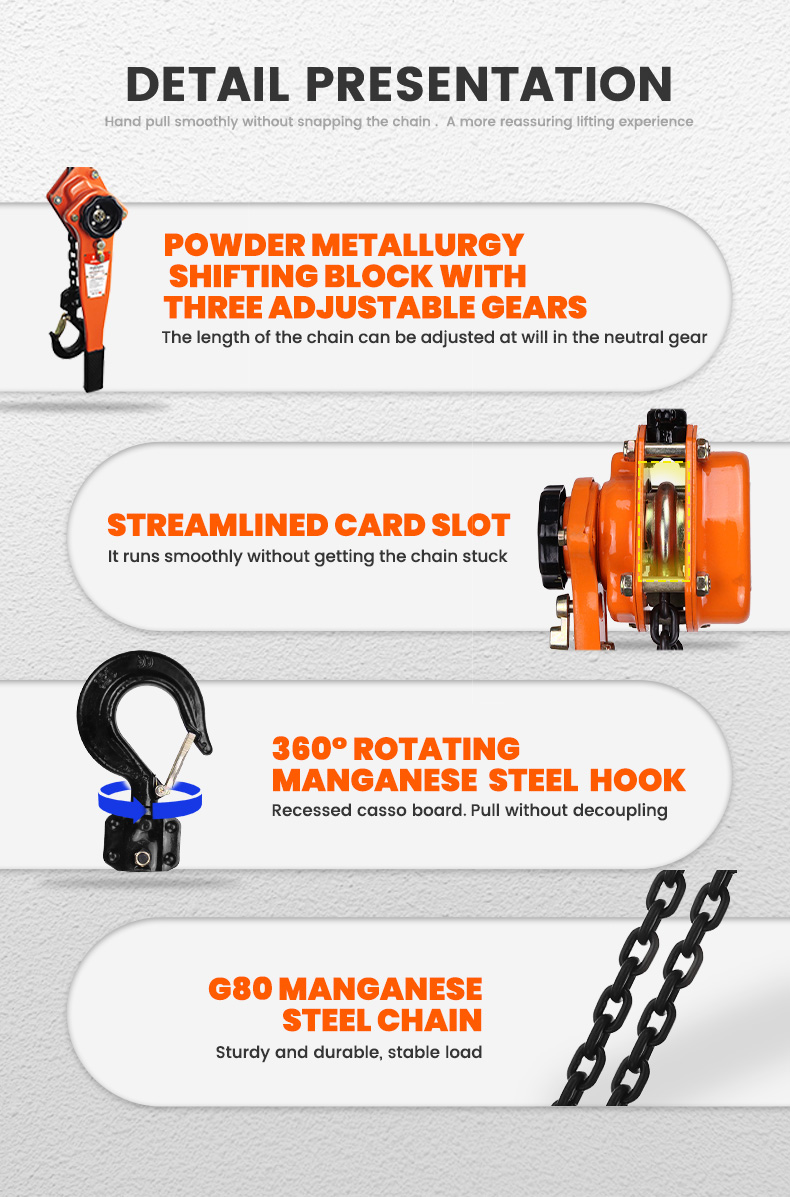

- The source labels a stamping handwheel and a black end chain ring.
- The visual specification sheet shows 0.5T through 9T rows with 1.5 m standard lift.
Technical Specifications
| Model | Capacity (t) | Standard lift (m) | Running test (t) | Effort required to lift max load (N) | No. of falls of load chain | Load-chain diameter (mm) | Net weight (kg) | Packing (L*W*H) (cm) |
|---|---|---|---|---|---|---|---|---|
| 0.5T | 0.5 | 1.5 | 0.75 | 140 | 1 | 5 | 3.5 | 33.5*12.5*9 |
| 0.75T | 0.75 | 1.5 | 1.125 | 140 | 1 | 6 | 7 | 37*14*17 |
| 1T | 1 | 1.5 | 1.5 | 140 | 1 | 6 | 7.5 | 37*14*17 |
| 1.5T | 1.5 | 1.5 | 2.25 | 240 | 1 | 8 | 11 | 52*14*18 |
| 2T | 2 | 1.5 | 3 | 240 | 1 | 8 | 11.5 | 52*14*18 |
| 3T | 3 | 1.5 | 4.5 | 320 | 1 | 10 | 19 | 55*16*21 |
| 5T | 5 | 1.5 | 7.5 | 340 | 2 | 10 | 32 | 55*16*21 |
| 9T | 9 | 1.5 | 11.25 | 360 | 3 | 10 | 47 | 62*48.5*26 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
