HAND CHAIN BLOCK

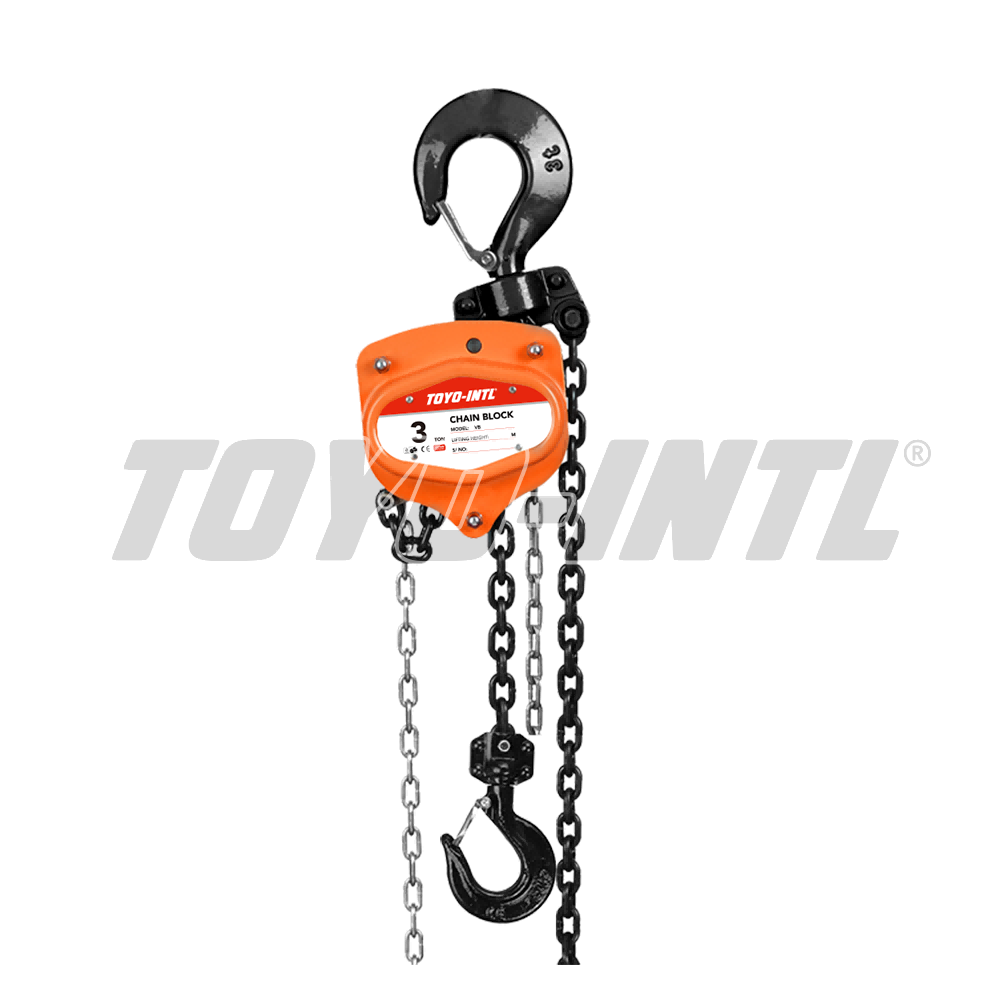

TOYO-INTL VB Chain Block
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
The construction is described as lightweight and robust. The source specifies low effort to lift the maximum load. Hooks are fully forged. The lift wheel is fully machined. The load chain is described as ISO high-grade alloy chain. A zinc-plated hand chain is standard. Double-cover protection is provided. The source lists an overload-protection device available on request, sealed roller bearings, a ratchet disk, and a unique curled edge.
Product Details
- The construction is described as lightweight and robust.
- The source specifies low effort to lift the maximum load.
- Hooks are fully forged.
- The lift wheel is fully machined.
- The load chain is described as ISO high-grade alloy chain.
- A zinc-plated hand chain is standard.
- Double-cover protection is provided.

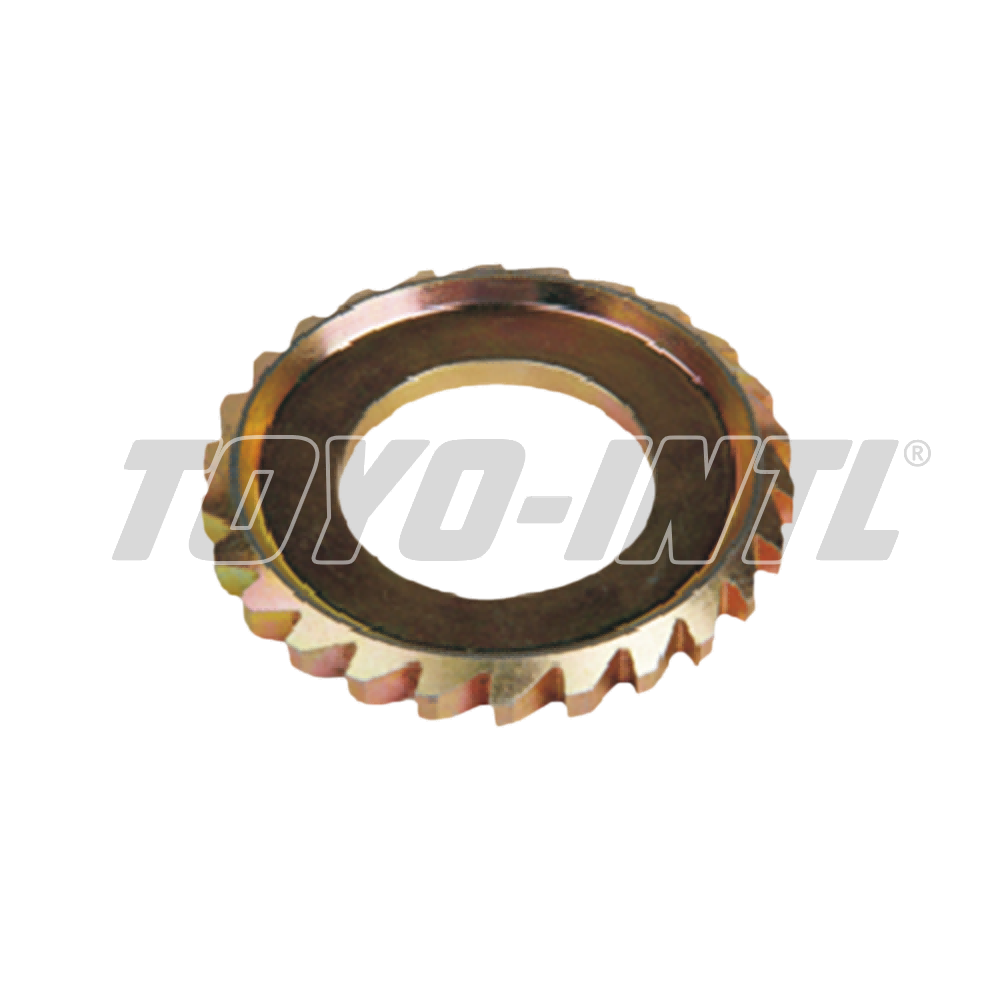

- The source lists an overload-protection device available on request, sealed roller bearings, a ratchet disk, and a unique curled edge.
Technical Specifications
| Parameter | Unit | VB-0.5 | VB-1 | VB-1.5 | VB-2 | VB-3 | VB-5 | VB-10 | VB-20 | VB-30 | VB-50 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity load | t | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 30 | 50 |
| Standard lift | m | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Running testload | kn | 7.5 | 15 | 22.5 | 3 | 4.5 | 7.5 | 15 | 30 | — | 70 |
| Effort required to lift max load | N | 200(20.5) | 320(32.5) | 360(36.5) | 365(37) | 385(39) | 435(44.3) | 435(44.3) | 435×2 (44.3×2) | 435×2 (44.3×2) | 435×2 (44.3×2) |
| Load-chain diameter / number of falls | mm | 6.0×1 | 6.0×1 | 8.0×1 | 8.0×1 | 8.0×2 | 10.0×2 | 10.0×4 | 10.0×8 | 10.0×12 | 10.0×22 |
| Distance of hand-chain pulling when lifting height of up 1 metre | mm | 32 | 40 | 72 | 72 | 144 | 158 | 316 | 636×2 | 948×2 | 1738×2 |
| Net weight | kg | 8.4 | 11 | 16.2 | 18.5 | 25.6 | 42.8 | 79.5 | 193 | 220 | 1092 |
| Extra weight per metre of extra lift | kg | 1.7 | 1.7 | 2.3 | 2.3 | 3.7 | 5.6 | 9.7 | 19.4 | 26.4 | 48.4 |
| Packing measurement (L*W*H) | cm | 22x15x19.5 | 23x18x19.5 | 28x21x24 | 28x21x24 | 32x21x26 | 40x21x21 | 64x21x21 | 64x38x64 | 72x50x68 | 110x100x130 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
