HAND CHAIN BLOCK

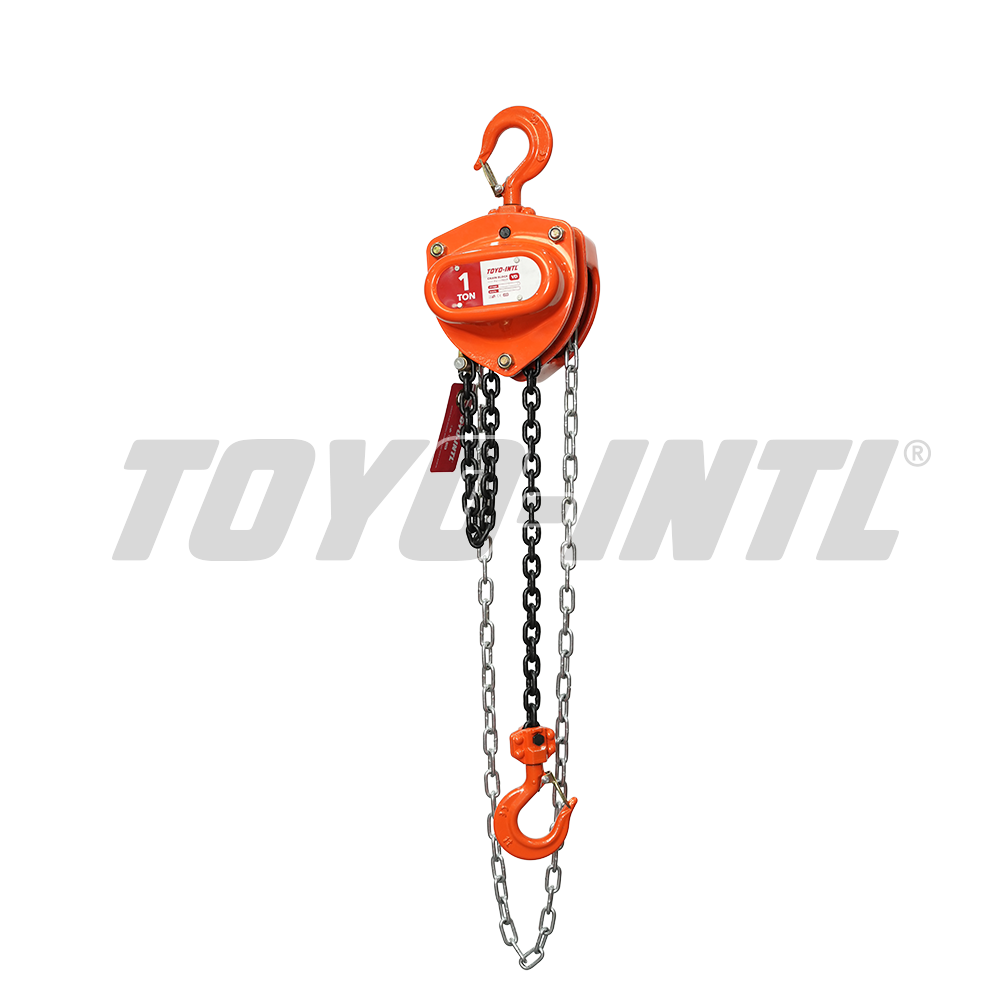

TOYO-INTL VD Chain Block
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
All-steel construction includes a rugged gear case and hand-wheel cover. Double pawl springs and a slip-clutch device provide overload protection and reliable braking. The compact, lightweight, portable design is paired with an efficient drive train to reduce manual effort. Low headroom is specified to increase lifting height. A double enclosed brake cover keeps out dust, rain, and dirt. The source labels an overload-protection device, casting guide wheel, and sealed roller bearings. The source labels a G80 chain and safety hook.
Product Details
- All-steel construction includes a rugged gear case and hand-wheel cover.

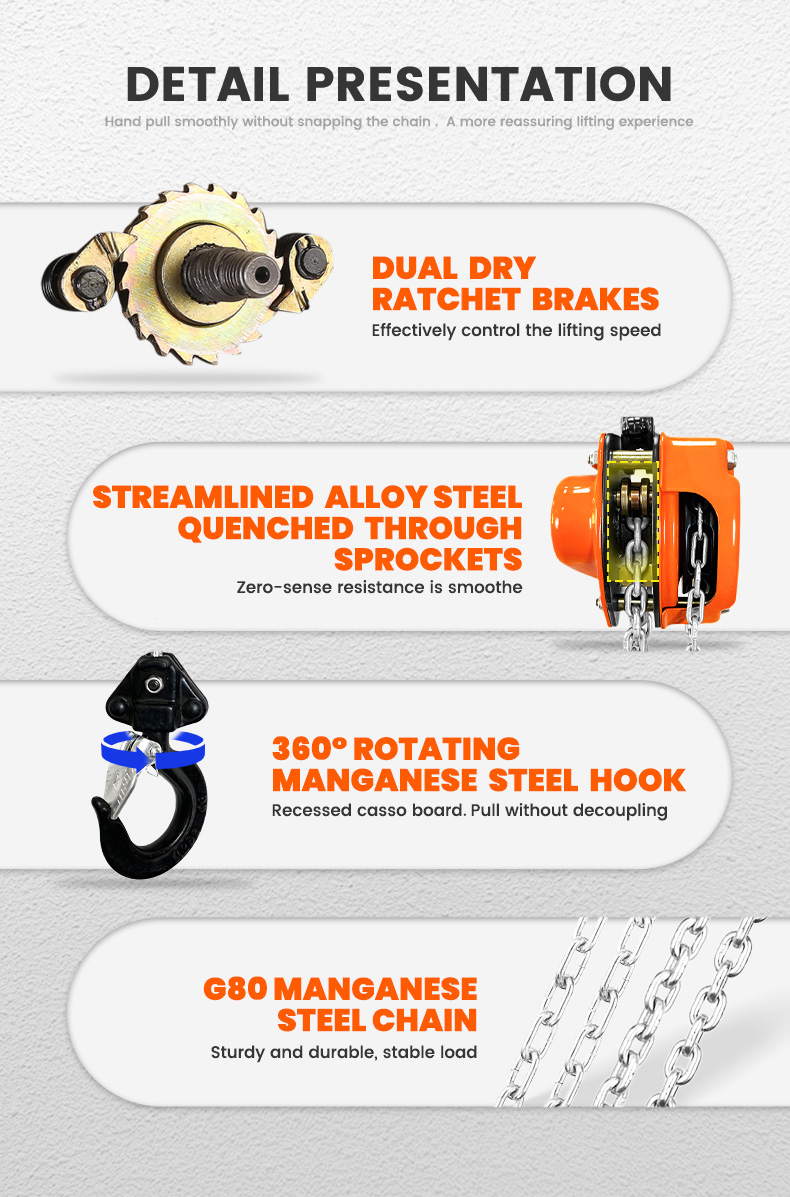

- Double pawl springs and a slip-clutch device provide overload protection and reliable braking.
- The compact, lightweight, portable design is paired with an efficient drive train to reduce manual effort.
- Low headroom is specified to increase lifting height.
- A double enclosed brake cover keeps out dust, rain, and dirt.

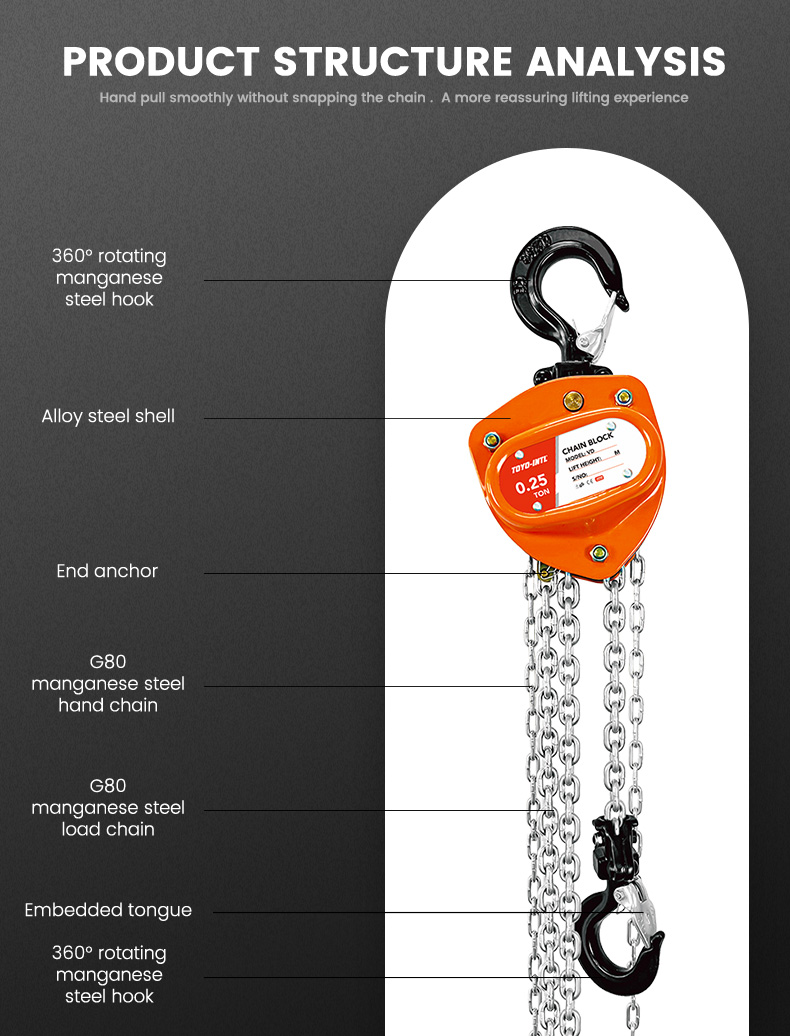

- The source labels an overload-protection device, casting guide wheel, and sealed roller bearings.

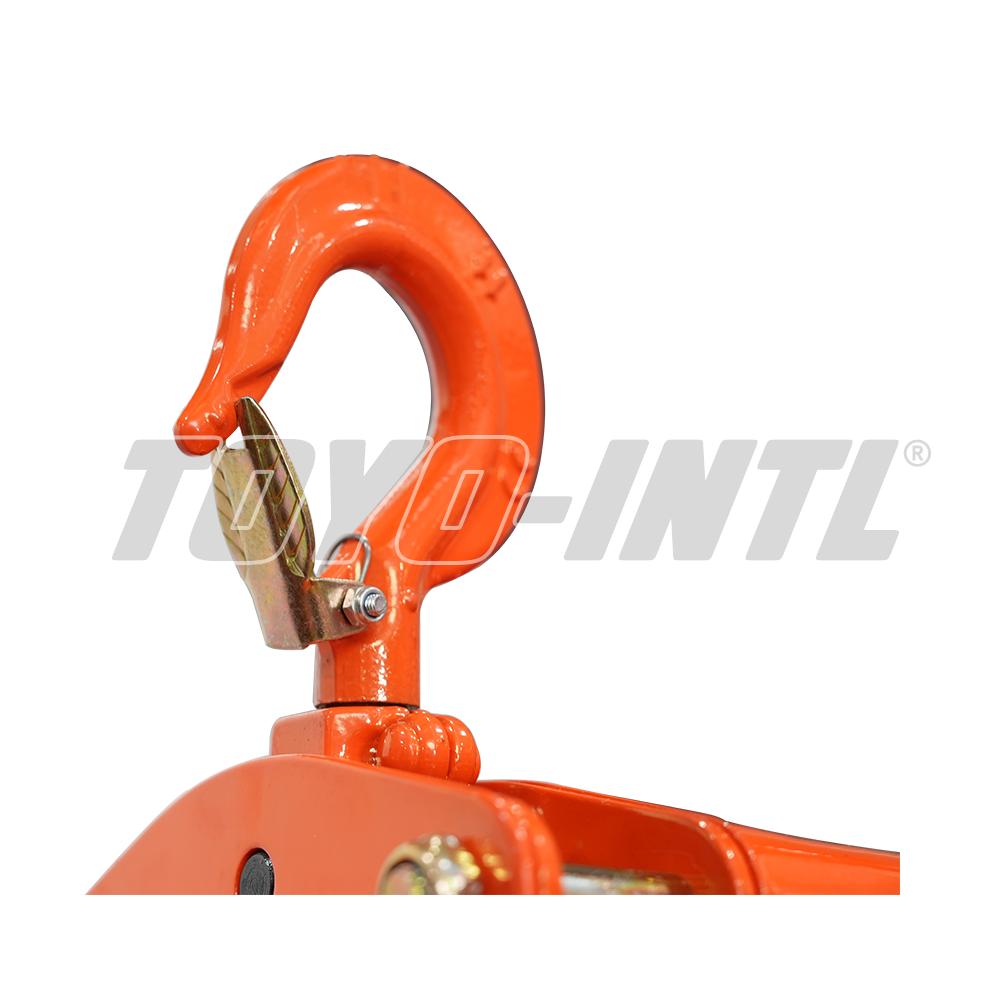

- The source labels a G80 chain and safety hook.
Technical Specifications
| Parameter | VD-0.25T | VD-0.5T(MINI) | VD-0.5T | VD-1T | VD-1.5T | VD-2T | VD-3TS | VD-3T | VD-5T | VD-10T | VD-20T |
|---|---|---|---|---|---|---|---|---|---|---|---|
| W.L.L. | 250 kg | 500 kg | 500 kg | 1000 kg | 1500 kg | 2000 kg | 3000 kg | 3000 kg | 5000 kg | 10000 kg | 20000 kg |
| Lift | 2.5 m | — | 2.5 m | — | — | — | — | — | — | — | — |
| Load-chain falls | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 |
| Load-chain size | 4×12 | 5×15 | 5×15 | 6×18 | 7.1×21 | 8×24 | 10×30 | 7.1×21 | 9×27 | 9×27 | 9×27 |
| Hand force | 220 N | 250 N | 240 N | 250 N | 265 N | 335 N | 363 N | 265 N | 360 N | 380 N | 380×2 N |
| N.W. | 3.8 kg | 6.5 kg | 11 kg | 12.5 kg | 17.8 kg | 19.5 kg | 29 kg | 23.5 kg | 41.3 kg | 78.5 kg | 193 kg |
| Packing size | 20x15x12 cm | 22x15x15 cm | 24x19x18 cm | 28x21x21 cm | 34x26x20 cm | 34x26x20 cm | 41x32x24 cm | 34x26x20 cm | 41x32x24 cm | 48x42x18.5 cm | 78x68x20 cm |
