LEVER HOIST

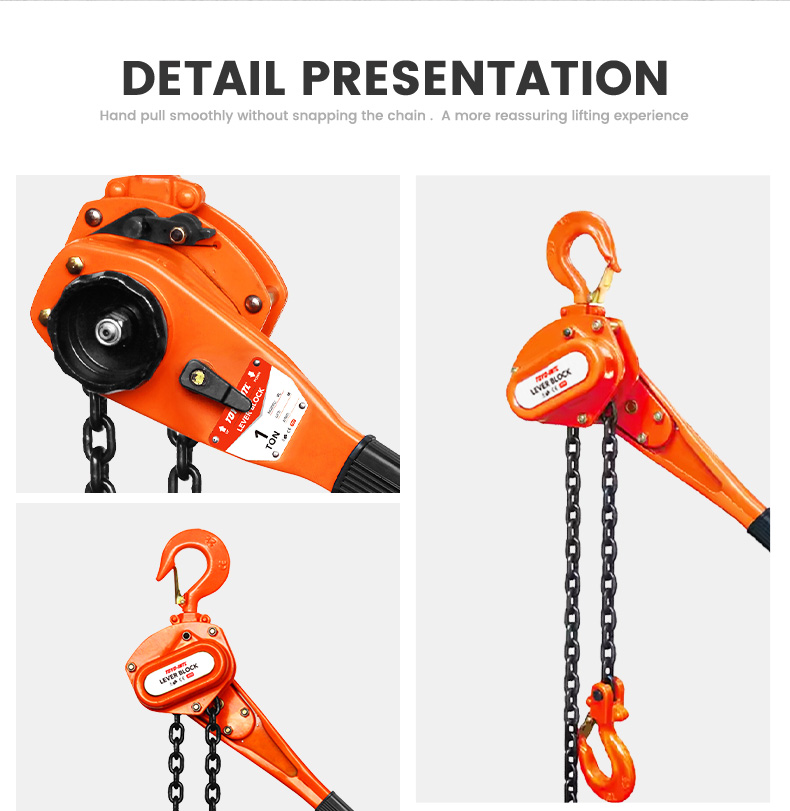

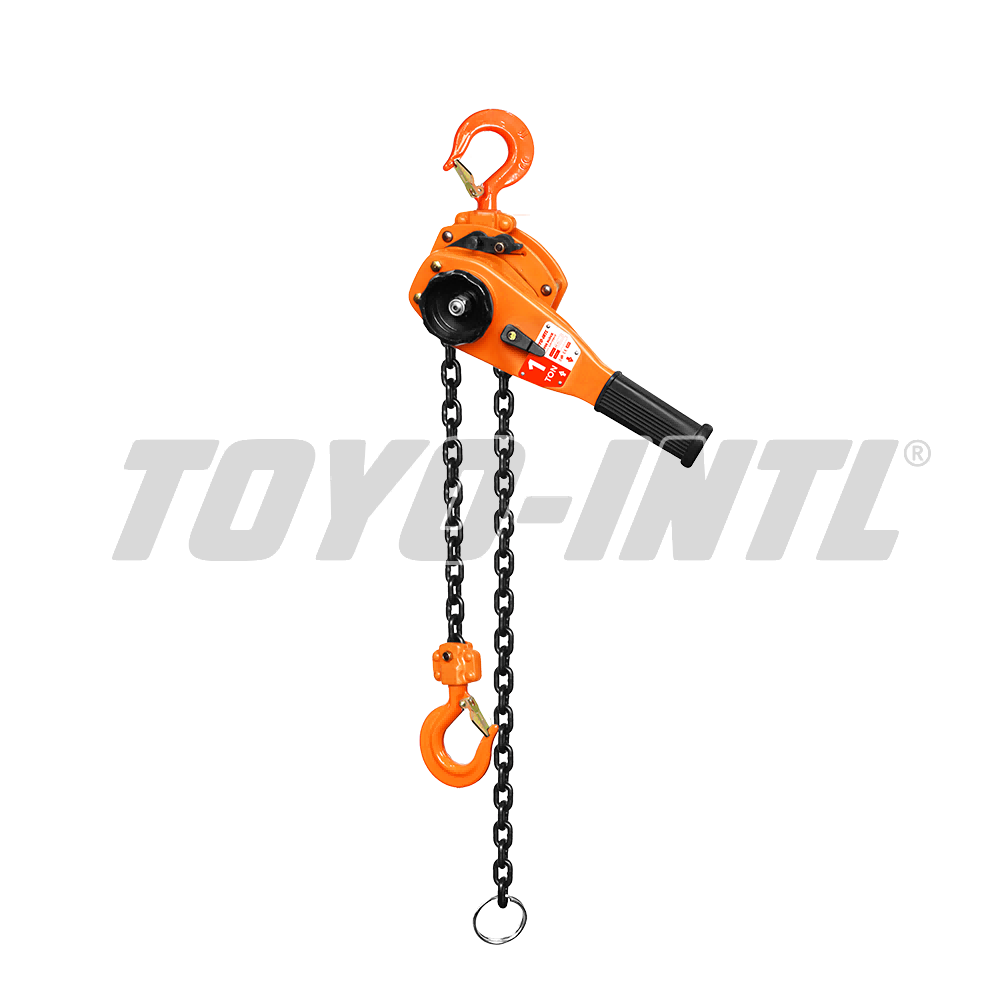

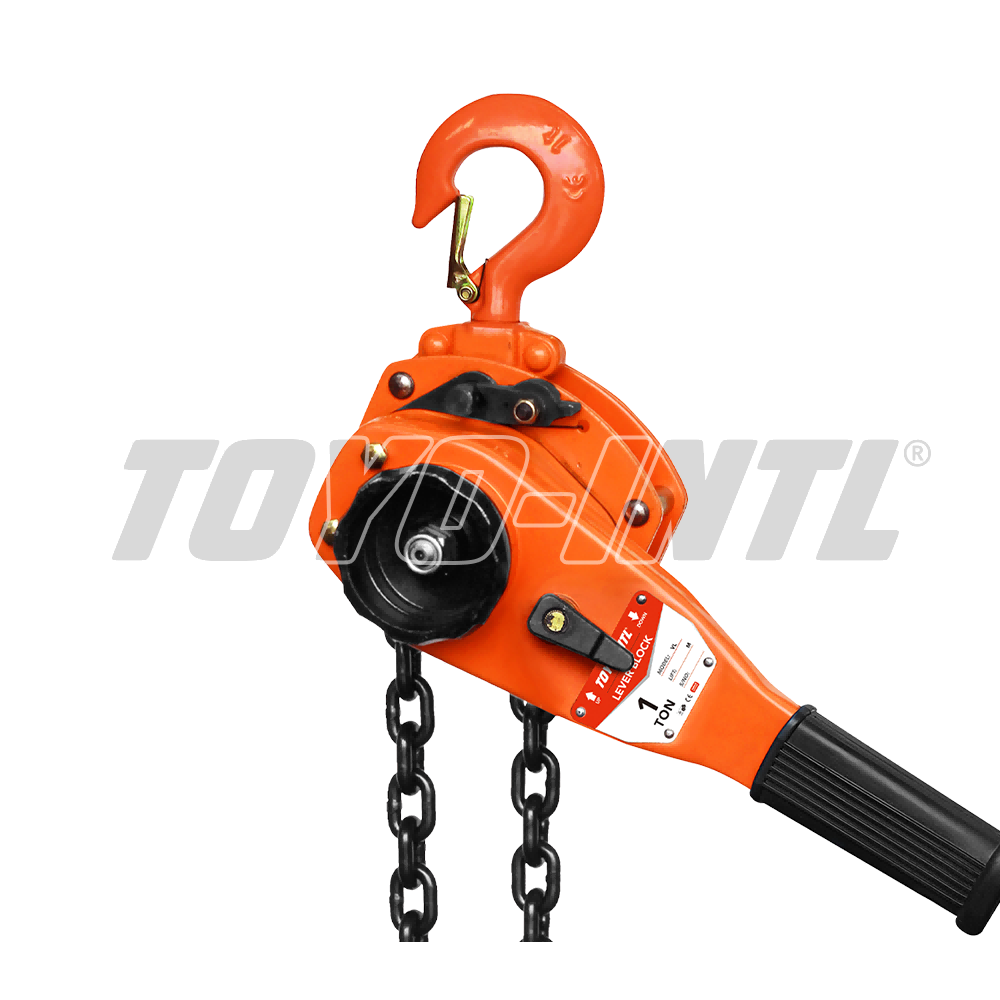

TOYO-INTL VL Lever Hoist
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
All-steel construction is specified. The product has a compact design. A double-pawl braking system is specified. The hooks are fully forged. Long-lasting powder-coating protection is specified. The load chain is high-standard G80, available in black or galvanized finish. A heavy-duty galvanized safety latch is explicitly labeled.
Product Details
- All-steel construction is specified.
- The product has a compact design.

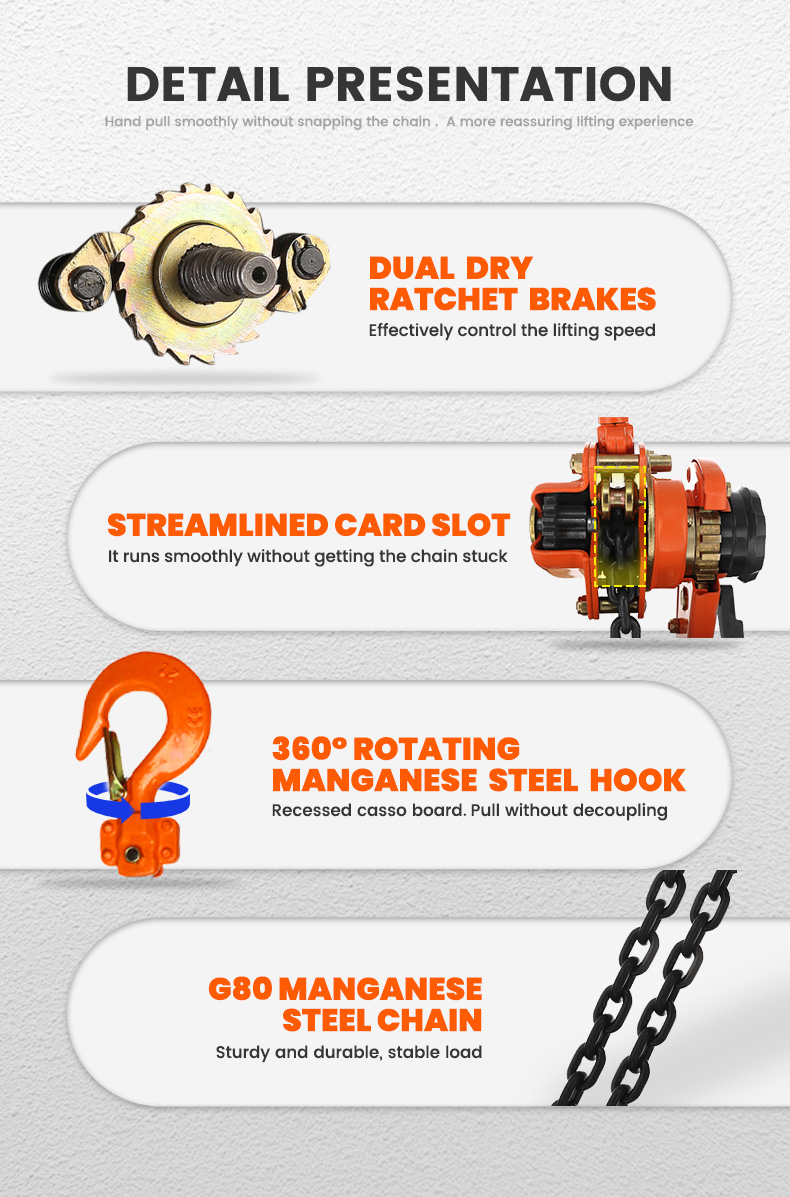

- A double-pawl braking system is specified.
- The hooks are fully forged.
- Long-lasting powder-coating protection is specified.
- The load chain is high-standard G80, available in black or galvanized finish.
- A heavy-duty galvanized safety latch is explicitly labeled.
Technical Specifications
| Model | Load capacity (t) | Standard lift (m) | Running test (t) | Effort required to lift max load (N) | Chain-fall number | Load-chain diameter (mm) | Net weight (kg) | Packing (L*W*H) (cm) | Extra weight per meter of extra lift (kg) |
|---|---|---|---|---|---|---|---|---|---|
| VL0.5 | 0.5 | 1.5 | 0.75 | 330 | 1 | 5 | 3.5 | 33.5×12.5×9 | 0.55 |
| VL0.75 | 0.75 | 1.5 | 1.125 | 230 | 1 | 6.3 | 6.6 | 34x12x17 | 0.88 |
| VL1 | 1 | 1.5 | 1.5 | 250 | 1 | 6.3 | 6.6 | 34x12x17 | 0.88 |
| VL1.5 | 1.5 | 1.5 | 2.25 | 295 | 1 | 7.1 | 11 | 45x16x18 | 1.12 |
| VL2 | 2 | 1.5 | 3 | 315 | 1 | 7.1 | 11 | 45x16x18 | 1.12 |
| VL3 | 3 | 1.5 | 4.5 | 414 | 1 | 9 | 17 | 47x20x21 | 1.78 |
| VL6 | 6 | 1.5 | 9 | 430 | 2 | 9 | 27.5 | 47x20x21 | 3.74 |
| VL9 | 9 | 1.5 | 13.5 | 430 | 3 | 9 | 47 | 62×48.5×26 | 5.61 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
