HAND CHAIN BLOCK
Sale!
TOYO-INTL VT Chain Block
Original price was: د.إ 100.د.إ 70Current price is: د.إ 70.
7 in stock
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:

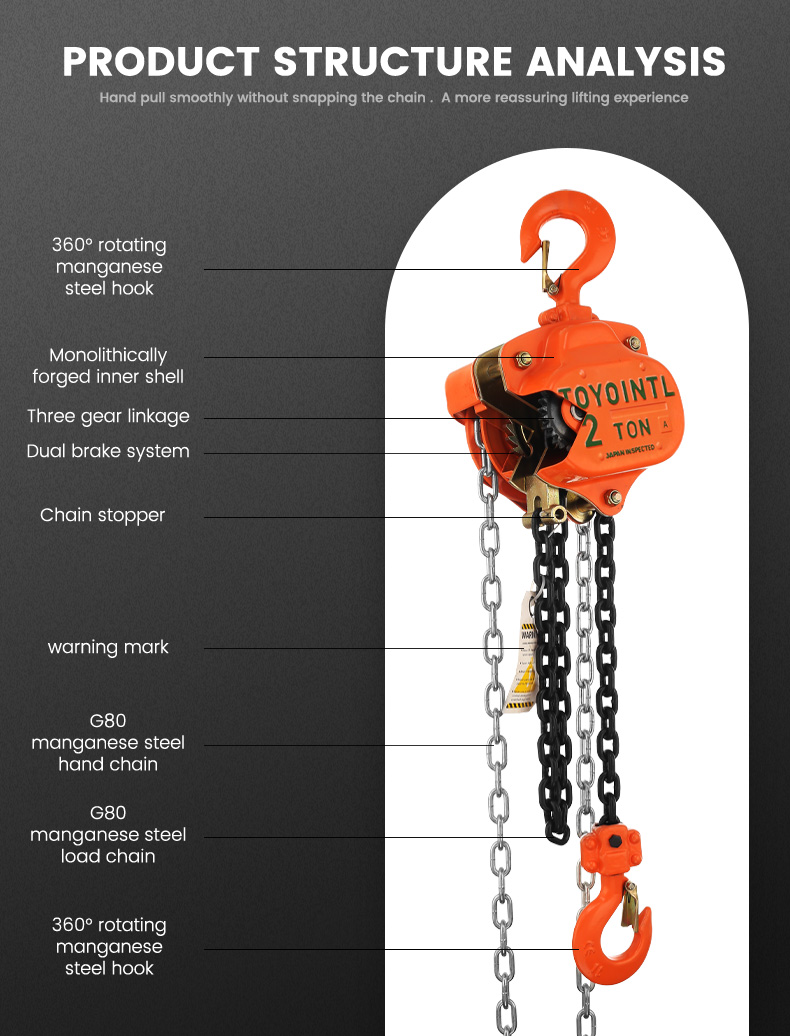

Structural parts are made of high-quality steel. Hooks, gears, and the load chain are described as alloy-steel components. The hollow structure is specified to increase strength. Casting safety latches are shown. Major components are strictly heat-treated. The load chain is made by a German machine and identified as high-strength G80 alloy steel. A galvanized plate carries an embossed logo and capacity for permanent identification. The special hand-wheel pitch is matched to the chain to save pulling force and prevent blocking; a machined load-wheel guide supports smooth movement.

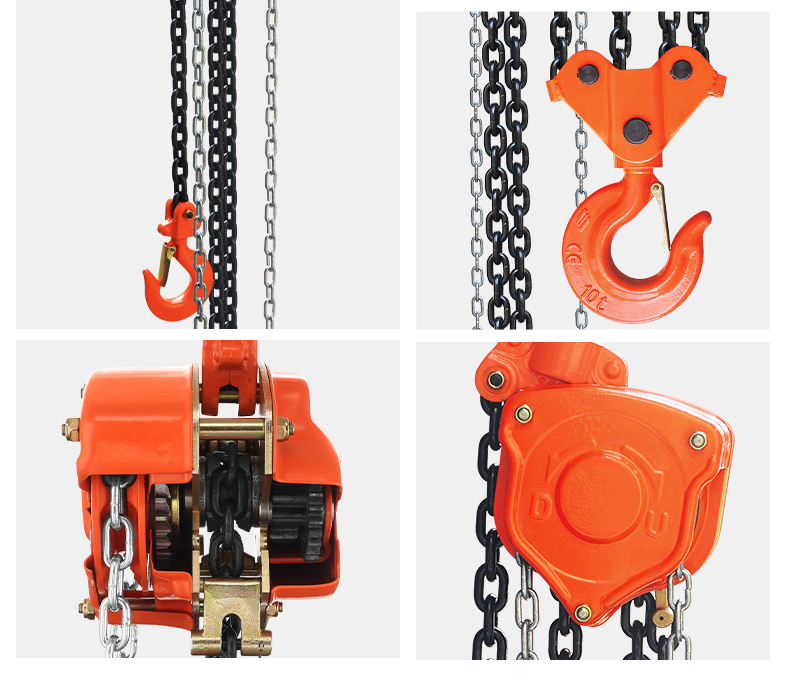

Product Details
- Structural parts are made of high-quality steel.
- Hooks, gears, and the load chain are described as alloy-steel components.
- The hollow structure is specified to increase strength.
- Casting safety latches are shown.
- Major components are strictly heat-treated.
- The load chain is made by a German machine and identified as high-strength G80 alloy steel.
- A galvanized plate carries an embossed logo and capacity for permanent identification.
- The special hand-wheel pitch is matched to the chain to save pulling force and prevent blocking; a machined load-wheel guide supports smooth movement.
Technical Specifications
| Model | Capacity (t) | Standard lift (m) | Running test (t) | Effort to lift max load (N) | No. of load-chain falls | Load-chain diameter (mm) | Net weight (kg) | Packing (L*W*H) (cm) |
|---|---|---|---|---|---|---|---|---|
| VT-0.5T | 0.5 | 2.5 | 0.5 | 350 | 1 | 5 | 8.4 | 22*14*15 |
| VT-1T | 1 | 2.5 | 1 | 330 | 1 | 6.3 | 12 | 25*19*16 |
| VT-1.5T | 1.5 | 2.5 | 1.5 | 348 | 1 | 7.1 | 16.2 | 33*24*16 |
| VT-2T | 2 | 3 | 2 | 365 | 1 | 8 | 20 | 33*24*19 |
| VT-3T | 3 | 3 | 3 | 360 | 2 | 7.1 | 24 | 34.5*24*16 |
| VT-5T | 5 | 3 | 5 | 410 | 2 | 9 | 41 | 40*30*19 |
| VT-10T | 10 | 3 | 10 | 410 | 4 | 9 | 79 | 48*42*18.5 |
| VT-15T | 15 | 3 | 15 | 435 | 6 | 9 | 120 | 69*56*20 |
| VT-20T | 20 | 3 | 20 | 435*2 | 8 | 9 | 193 | 78*68*20 |
| VT-30T | 30 | 3 | 30 | 435*2 | 12 | 9 | 220 | 85*67*30 |
| VT-50T | 50 | 3 | 50 | 435*2 | 22 | 9 | 1092 | 110*100*130 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
