TOYO-INTL Wide Base Push Type Electric Wire Rope Hoist
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:

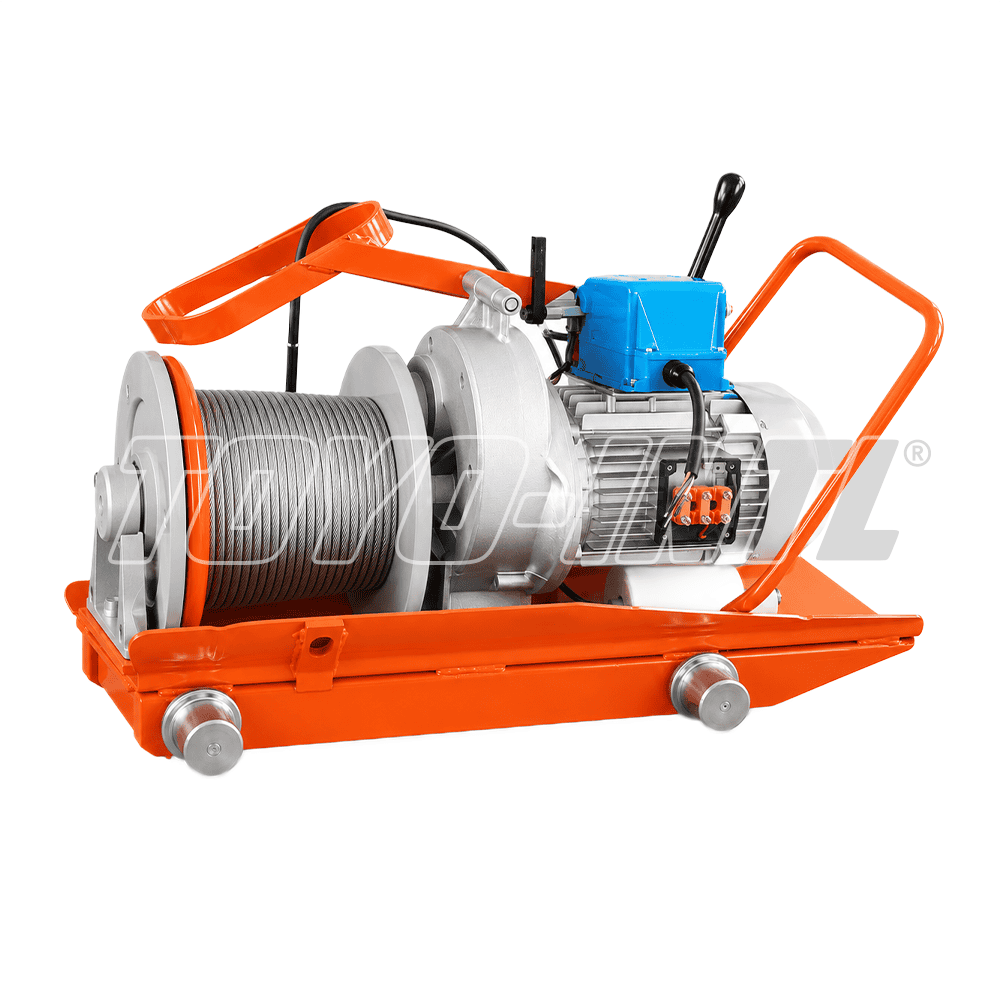

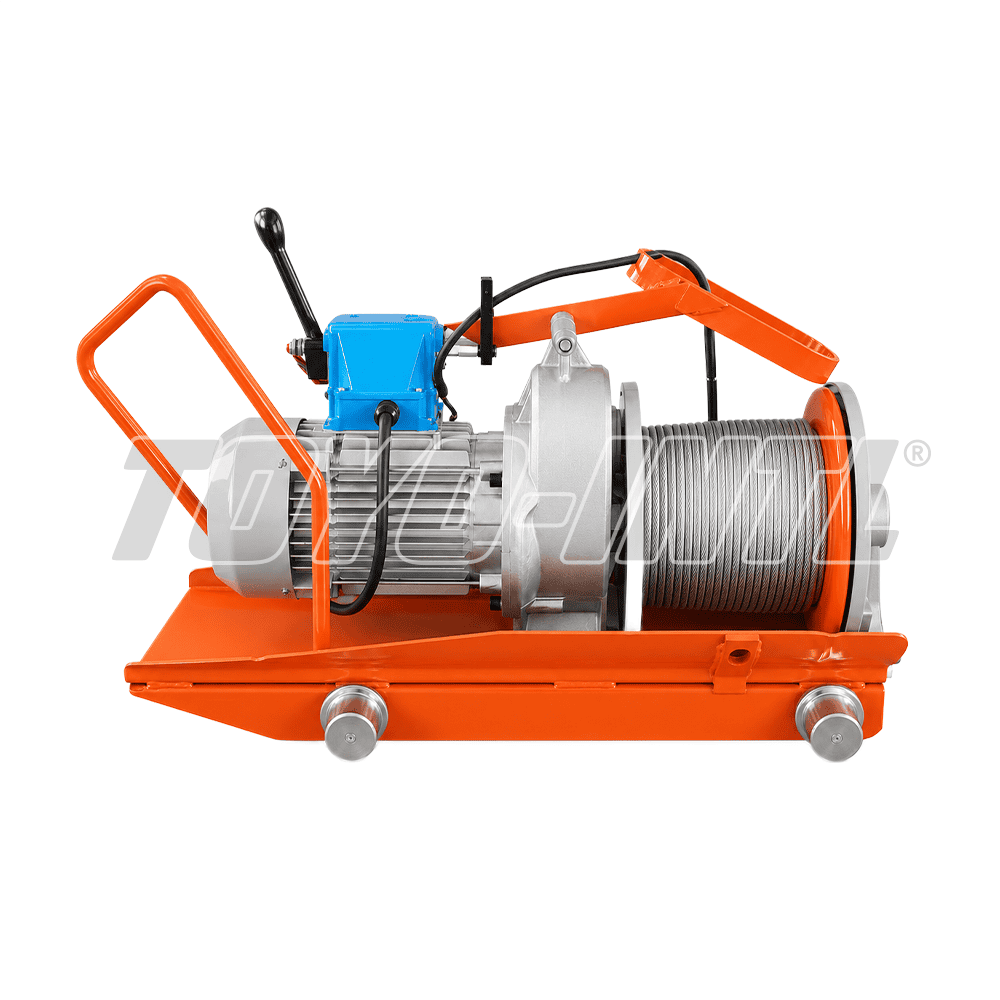

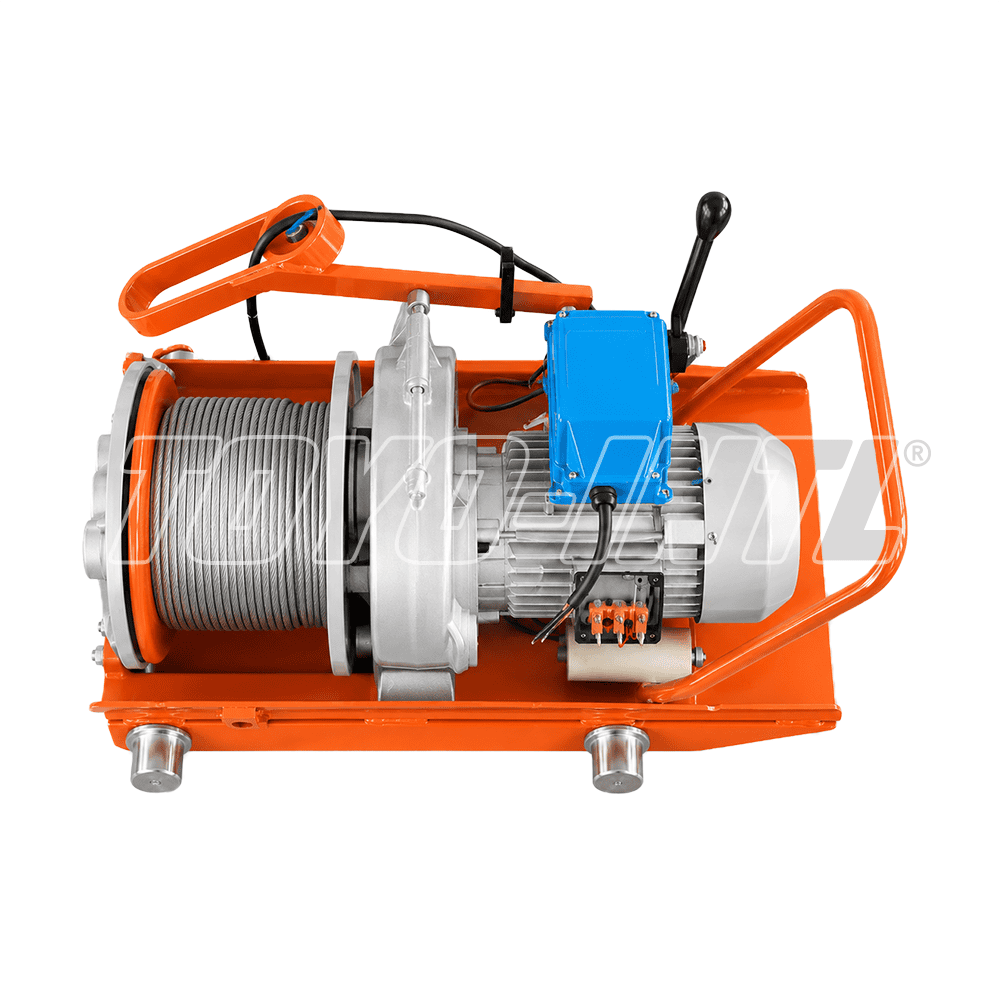

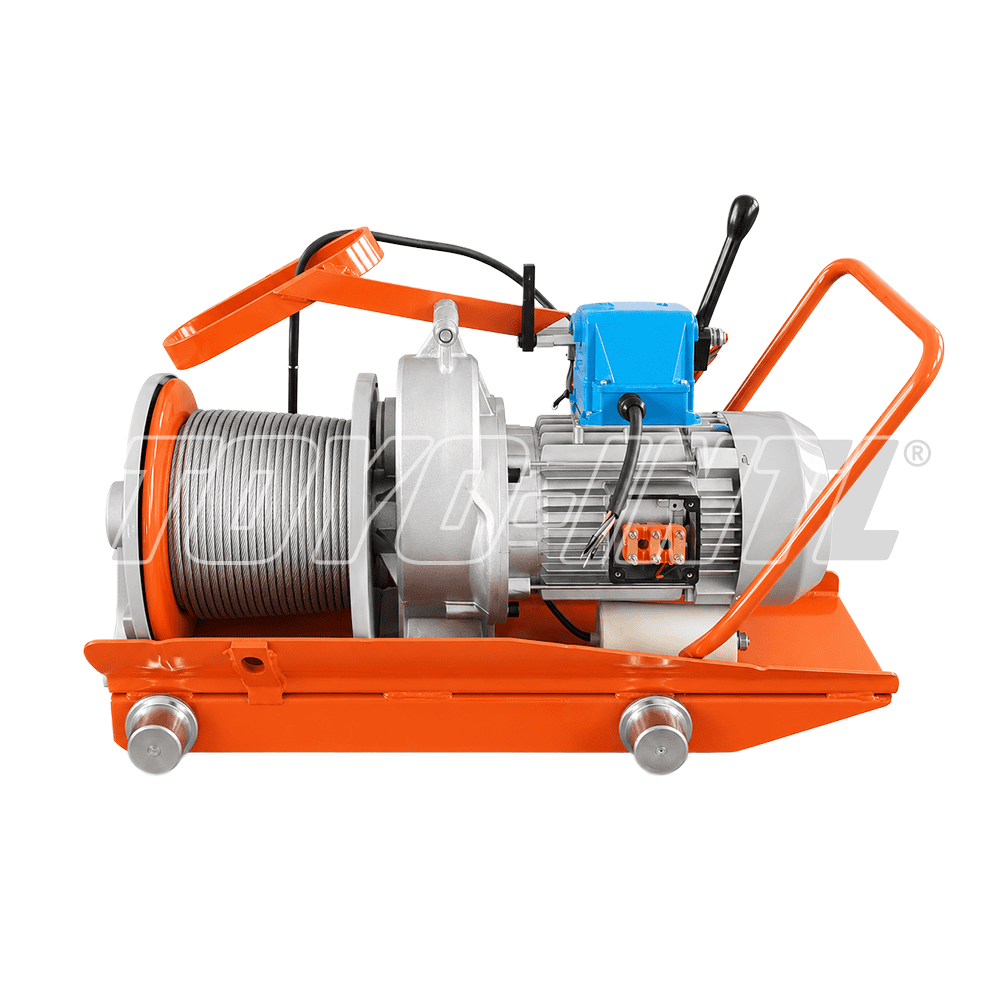

Wide-base push-type electric winch. Rated capacities of 300–500 kg are shown for light-to-medium lifting. Voltage options cover AC 110/220/230/240 V and AC 230/380/440 V. Frequency is listed as 50/60 Hz. Lifting speed configurations shown are 16, 21 and 28 m/min. Cable diameters of 6 mm and 7 mm are listed. Packing size is shown as 800×340×540 mm.
Product Details
- Wide-base push-type electric winch.
- Rated capacities of 300–500 kg are shown for light-to-medium lifting.
- Voltage options cover AC 110/220/230/240 V and AC 230/380/440 V.
- Frequency is listed as 50/60 Hz.
- Lifting speed configurations shown are 16, 21 and 28 m/min.
- Cable diameters of 6 mm and 7 mm are listed.
- Packing size is shown as 800×340×540 mm.
Technical Specifications
| Model | Rated capacity (kg) | Lifting height (m) | Lifting speed (m/min) | Voltage | Cable diameter (mm) | Frequency (Hz) | Packing size (mm) | G.W. / N.W. (kg) |
|---|---|---|---|---|---|---|---|---|
| HSG-B300F | 300 | 24 | 21 | AC 110/220/230/240 | 6 | 50/60 | 800×340×540 | 58/56 |
| HSG-B400F | 400 | 24 | 21 | AC 110/220/230/240 | 6 | 50/60 | 800×340×540 | 58/56 |
| HSG-B500F | 500 | 24 | 16 | AC 110/220/230/240 | 7 | 50/60 | 800×340×540 | 62/60 |
| HSG-B300F | 300 | 24 | 28 | AC 230/380/440 | 6 | 50/60 | 800×340×540 | 58/56 |
| HSG-B400F | 400 | 24 | 21 | AC 230/380/440 | 7 | 50/60 | 800×340×540 | 62/60 |
| HSG-B500F | 500 | 24 | 21 | AC 230/380/440 | 7 | 50/60 | 800×340×540 | 62/60 |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
