CHAIN SLING & LOAD BINDER
TOYO-INTL Wire Rope Sling
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:
Swaged wire-rope sling assembly. Single-, double- and four-limb configurations are shown. Master rings and hook end fittings are shown on the assemblies. Rope diameters from 6 to 70 mm are covered. The chart provides angle-specific working loads for double- and four-limb slings. The source specifies 1670 N/mm² fiber-core steel wire ropes. The source notes that the L value meets client requirements.
Product Details
- Swaged wire-rope sling assembly.

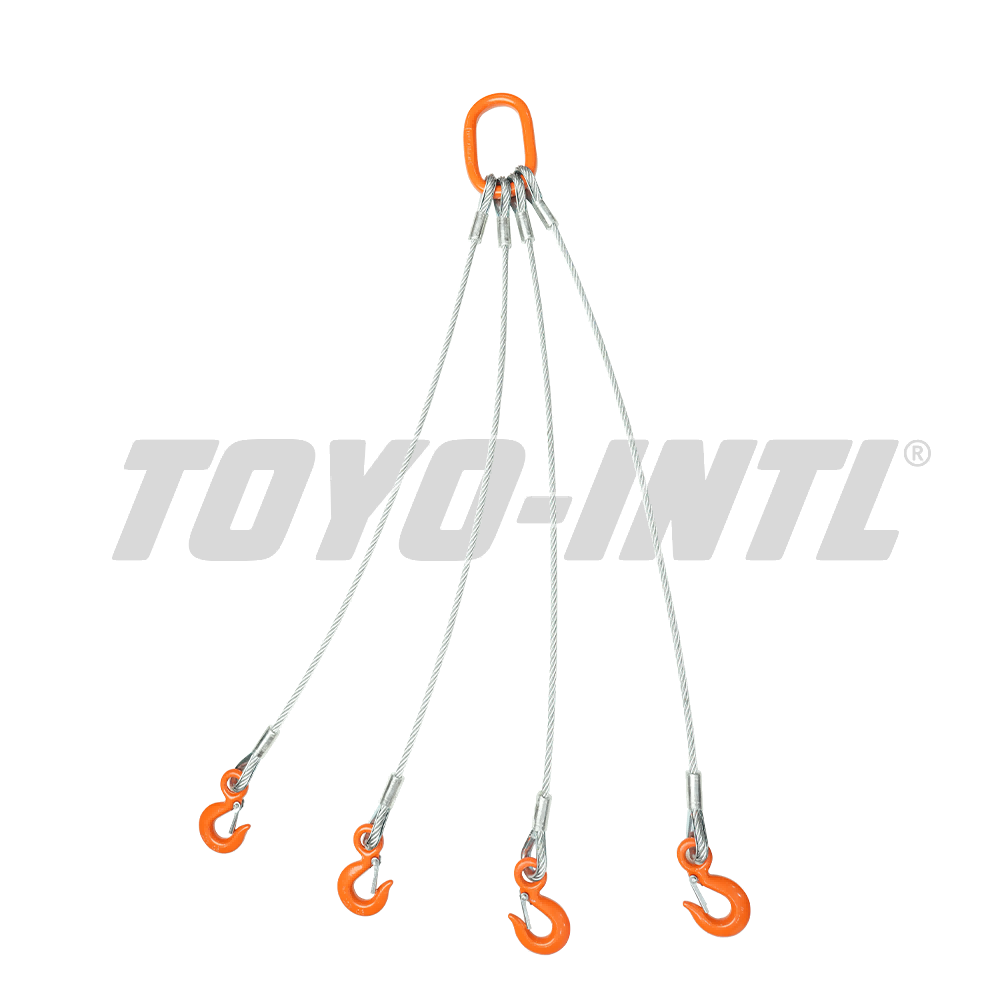

- Single-, double- and four-limb configurations are shown.
- Master rings and hook end fittings are shown on the assemblies.
- Rope diameters from 6 to 70 mm are covered.
- The chart provides angle-specific working loads for double- and four-limb slings.
- The source specifies 1670 N/mm² fiber-core steel wire ropes.
- The source notes that the L value meets client requirements.
Technical Specifications
| Code | Rope diameter (mm) | Single-limb working load (kN) | Double-limb working load, α≤90° (kN) | Double-limb working load, 90°≤α≤120° (kN) | Four-limb working load, α≤90° (kN) | Four-limb working load, 90°≤α≤120° (kN) |
|---|---|---|---|---|---|---|
| 06 | 6 | 2.90 | 4.10 | 2.90 | 6.10 | 4.40 |
| 08 | 8 | 4.90 | 6.90 | 4.90 | 10.30 | 7.40 |
| 10 | 10 | 7.90 | 11.00 | 7.90 | 16.60 | 11.90 |
| 12 | 12 | 11.80 | 16.50 | 11.80 | 24.80 | 17.70 |
| 14 | 14 | 15.70 | 22.00 | 15.70 | 33.00 | 23.60 |
| 16 | 16 | 21.60 | 30.00 | 21.60 | 45.40 | 32.40 |
| 18 | 18 | 26.50 | 37.00 | 26.50 | 55.70 | 39.80 |
| 20 | 20 | 32.40 | 45.00 | 32.40 | 68.00 | 48.60 |
| 24 | 24 | 49.00 | 68.60 | 49.00 | 102.90 | 73.50 |
| 28 | 28 | 68.60 | 96.00 | 68.60 | 144.10 | 102.90 |
| 32 | 32 | 88.30 | 123.60 | 88.30 | 185.40 | 132.50 |
| 38 | 38 | 117.70 | 165.00 | 117.70 | 247.00 | 176.60 |
| 40 | 40 | 132.40 | 185.00 | 132.40 | 278.00 | 199.00 |
| 44 | 44 | 147.00 | 206.00 | 147.00 | 309.00 | 221.00 |
| 52 | 52 | 216.00 | 302.40 | 216.00 | 450.00 | 324.00 |
| 56 | 56 | 257.00 | 359.80 | 257.00 | 540.00 | 386.00 |
| 64 | 64 | 335.00 | 469.00 | 335.00 | — | — |
| 70 | 70 | 400.00 | 560.00 | 400.00 | — | — |
Features & Benefits
FAQ
How do you ensure the quality of the products?
Every product undergoes rigorous testing including load testing, material inspection, and CE certification checks before shipment.
How long is your delivery time?
Generally 5–10 days if the goods are in stock, or 15–20 days if not in stock, depending on quantity. We support global shipping via sea, air, and express courier.
Do you provide samples?
Yes, we can arrange samples for evaluation. Contact us with the products you are interested in and any specific requirements.
