LEVER HOIST
TOYO-INTL ZNL Wire Rope Hoist
Price available on request
Why Choose Apex Lifting
Free Tech Support
3-Year Warranty
CE Certified
Support Global Shipping
Product Description:

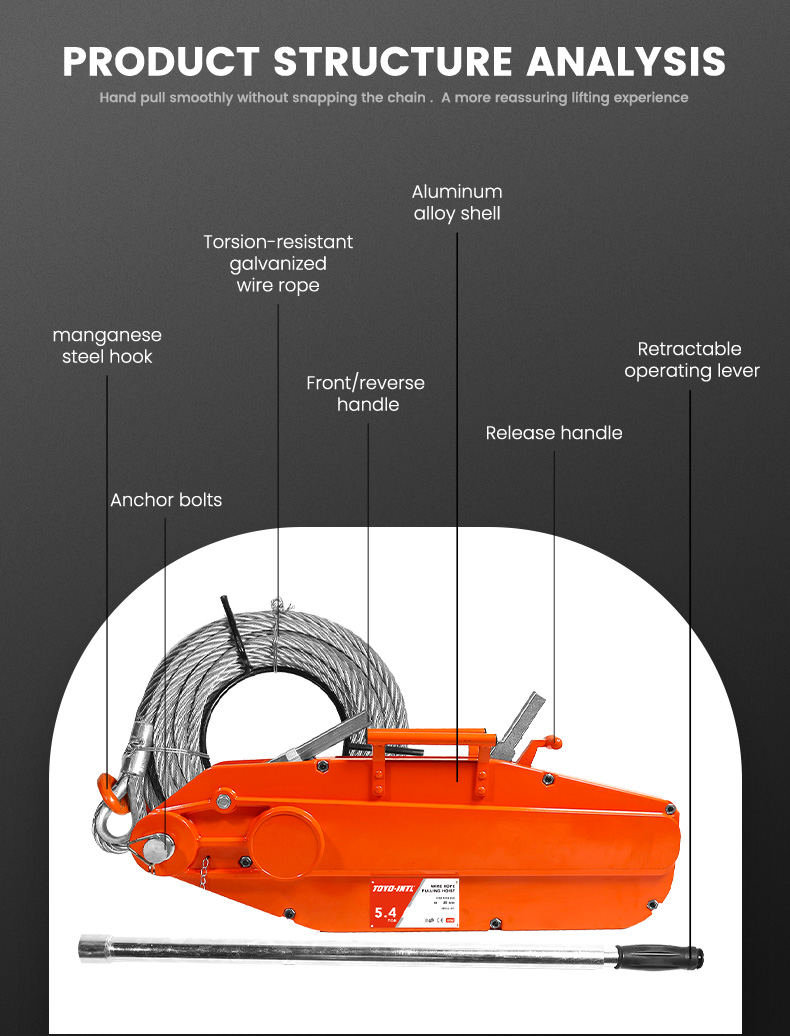

The rope-clamp system disengages with a lever for smooth wire-rope installation. Backward and forward levers are placed in tandem for centered power transfer. The source labels “Spares hear pins” and shows two spare pins in the carrying handle. A stamped serial number is provided for identification. The body is specified as high-strength cast aluminium alloy with a large flat bottom for horizontal and vertical stability. An anchor bolt supports connections with load hooks, sling ropes and sling chains. Galvanized steel wire rope is mounted on a reel; every rope is operationally tested to 150% of rated capacity and issued with an individual test certificate. An adjustable handle is shown for easy operation.
Product Details
- The rope-clamp system disengages with a lever for smooth wire-rope installation.
- Backward and forward levers are placed in tandem for centered power transfer.
- The source labels “Spares hear pins” and shows two spare pins in the carrying handle.
- A stamped serial number is provided for identification.
- The body is specified as high-strength cast aluminium alloy with a large flat bottom for horizontal and vertical stability.

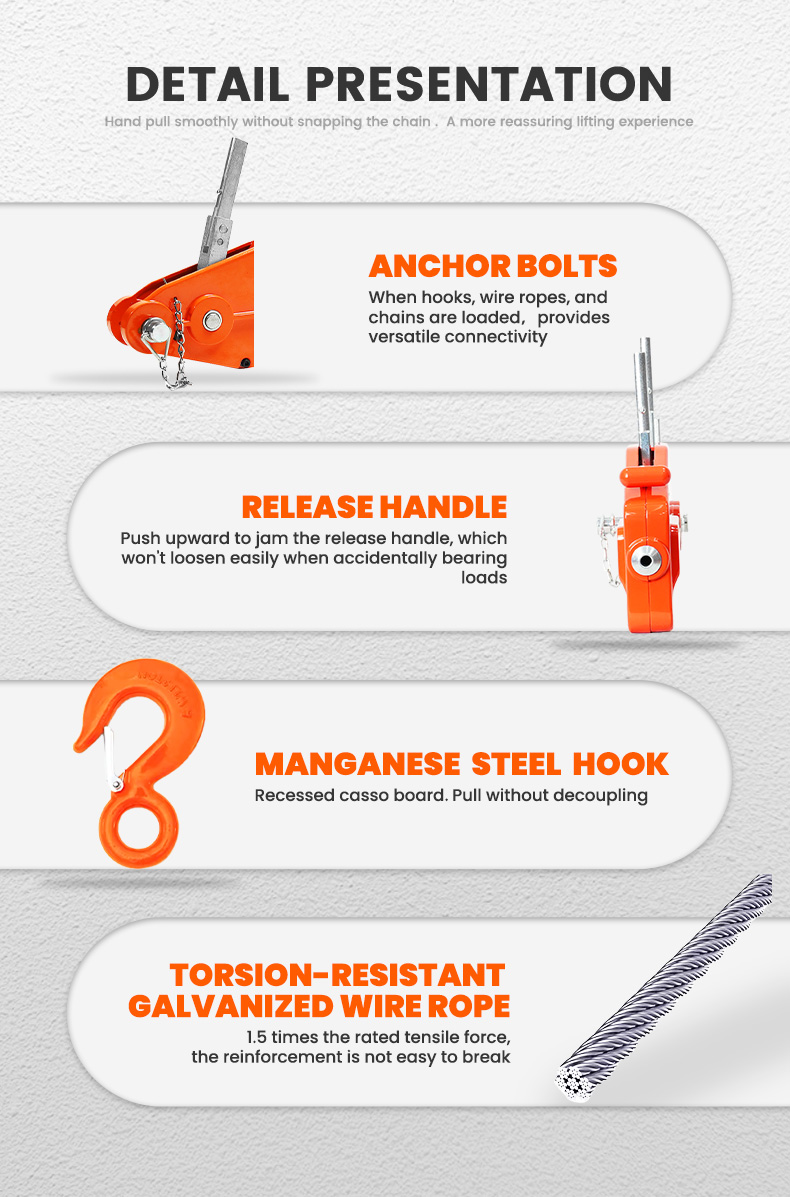

- An anchor bolt supports connections with load hooks, sling ropes and sling chains.

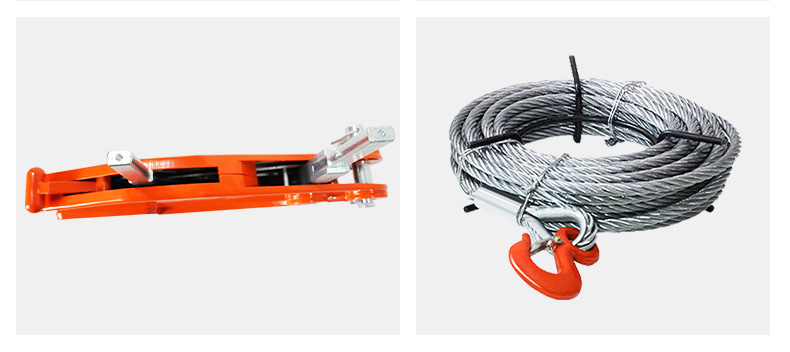

- Galvanized steel wire rope is mounted on a reel; every rope is operationally tested to 150% of rated capacity and issued with an individual test certificate.
- An adjustable handle is shown for easy operation.
Technical Specifications
| Item No. | Lifting capacity (kg) | Pulling capacity (kg) | Tested to (kg) | Steel wire rope dia. (mm) | Wire-rope safety-factor load capacity (kg) | Breaking strength of wire rope (kg) | Overall structure breaking strength (kg) | Safety device | Net weight, wire rope (20 m) (kg) | Net weight without wire rope (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZNL 08 | 800 | 1300 | 1500 | IWRC8.3 | 5xWLL | 5430 | 4xWLL | Safety pins | 7 | 6.4 |
| ZNL16 | 1600 | 2800 | 3000 | IWRC11 | 5xWLL | 9680 | 4xWLL | Safety pins | 12 | 12 |
| ZNL32 | 3200 | 6000 | 6000 | IWRC16 | 5xWLL | 17200 | 4xWLL | Safety pins | 24 | 23 |
| ZNL54 | 5400 | 10125 | 10125 | IWRC20 | 5xWLL | 27000 | 4xWLL | Safety pins | 45.5 | 54.5 |
